Agmachine Techno Co., Ltd.

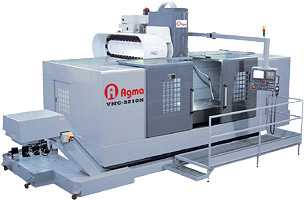

VMC-2210N

VERTICAL MACHINING CENTER

AGMA hardened-way machines are designed for rigidity and　heavy-duty cutting. The　machine structures are　exclusively made to absorb and dampen cutting-induced vibrations; yet the machine's agility is better than most　linear-way type machines on the market. In order to support our customers' needs, AGMA has built a support　network specifically in special material cutting applications. This allows us to offer our clientele the best solution　to their applications. Customer satisfaction is always AGMA's first priority.

High-Rigidity Structure
　All three axes have a hardened box-way design. In addition, the spindle headstock, column,saddle, base, and table　are all made
　of high-quality Meehanite cast iron.

The Unique Design for VMC-2210N

The 3 pcs Screw Type Chip Augers on X axis (Back Side 1 PC) and Y axis (2 pcs) are standard accessories for both VMC-2210 and 2210N. Y axis 2 pcs chip auger for VMC-2210N remove the chip from back to front, but for VMC-2210 its chip auger remove the chip from front to back.
The larger chip conveyor in front for VMC-2210N is a standard accessory, but the smaller chip conveyor is an optional accessory for VMC-2210 which remove the chip from front to back instead of standard chip auger at the ATC side or both sides.
In order to install the larger chip conveyor, therefore the fully enclosed splash guard for VMC-2210N should be larger than VMC-2210. The machine weight for VMC-2210N is 23,200kgs,for VMC-2210 is 20,000kgs. The floor space for VMC-2210N is 6,840mm *4,280mm, for VMC-2210 is 5,700mm*3,900mm.
The beautiful convenient foot stair in front is an optional accessory.

Pulley-Driven Spindle

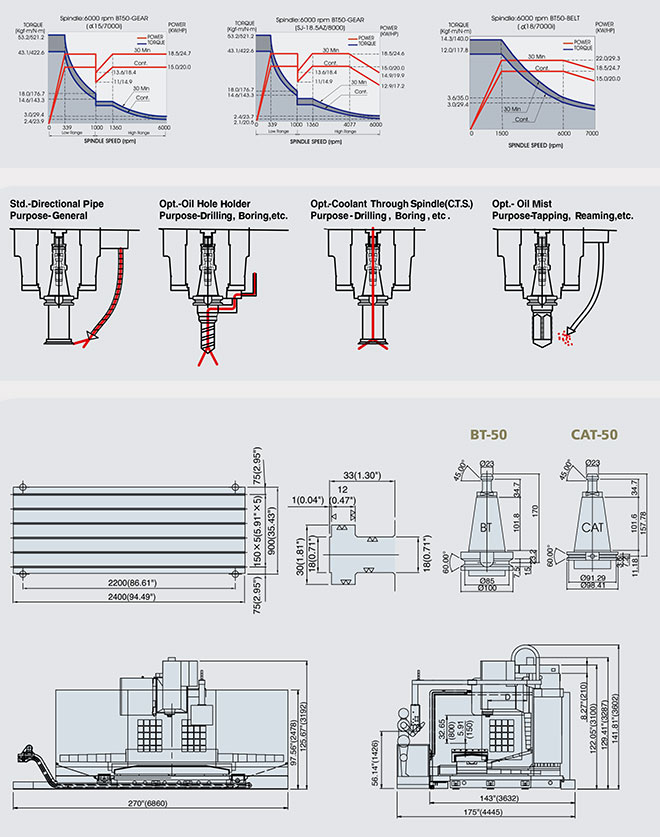

Three spindle alternatives of spindle are available. An enhanced headstock design allows the spindles to run up to 10,000 RPM. All spindles and pulley assemblies are dynamically balanced. A non-slip timing belt ensures the spindle will run smoothly, even at maximum speed.

Design of High Horse Power Spindle for Heavy-Duty Cutting
The gear-driven cartridge spindle is capable of reaching speeds of 6,000 RPM. There is a dramatic increase in spindle rigidity due to increased spindle bearing support. This along with a high horsepower spindle motor dramatically enhances the machine's cutting performance. In addition, each gear-driven spindle has a spindle oil cooler used to lower bearing temperature and prolong the spindle life.

X-Axis Chip Auger
The chip auger design provides optimal chip disposal and maximizes table cleanness.

Three Chip Auger Design
Instead of using a costly chip conveyor, the special three chip auger system efficiently removes metal chips which produced during machining.

Belt-Driven Spindle
The spindle headstock has increased rigidity due to the wide stance design of the z-axis ways and the long surface contact between the headstock and way bars.

Gear-Driven Spindle Transmission
The two-speed gear transmission allows full power utilization. All gears are made of Chrome Molybdenum alloy steel, heat treated, and precisely ground to ensure the spindle runs quietly and smoothly. Furthermore, the design of the floating tool release mechanism minimizes any pressure exerted on the spindle bearings.

Column with Honeycomb Shape Structure
The exclusive honeycomb shape structure design is utilized on the Column of VMC- 2210N. This design reinforces the headstock support and also enhances the stiffness of the structure. A high stiffness to weight ratio allows excellent dynamic performance during cutting.

Pressurized Oil Distributor
Lubricating oil is evenly distributed to the sliding surfaces of the machine by using Showa oil distributors along with hard-plumbed, low maintenance oil lines.
