VERTICAL MACHINING CENTER》EXTRA HIGH SPEED LINEAR GUIDE WAYS


Rapidest feedrate30,000 mm / min
among Taiwanese machines



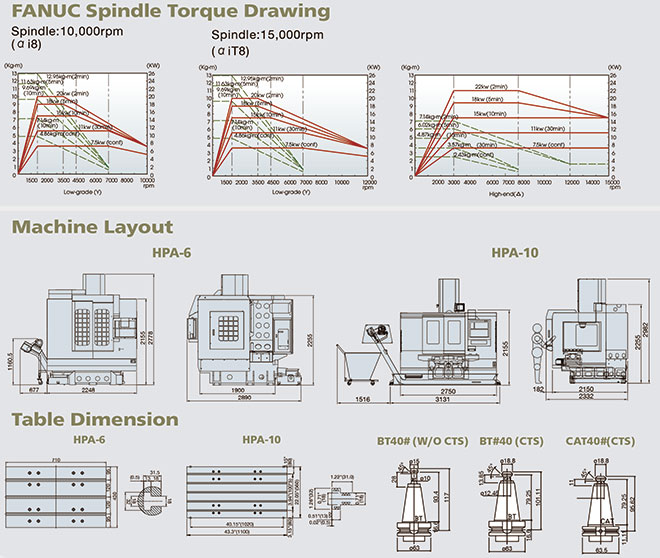

HPA-10

High Rigidity Structure Design

Synchronously adopt the European & Japanese design

  • Wide-span rigid column
  • Adopt Japan-made NSK extra-large 45mm precise roller-type linear guide way
  • X/Y/Z axis adopt high specification direct driven motor and high rigid coupling
  • High quality fully enclosed splash guard. Elegant appearance, well-executed and in good taste.

Extra-large X/Y axis motor
　4.0/7.0KW

Extra-large Z axis motor
　7.0KW (no counter balance design)

High reliable and high accuracy ballscrew design
　ø40mm high class double nut provides strong rigidity, high torque, better accuracy, long-life, and effectively heat
　extension control.
　
Extra Wide door design
　The width of door reaches 1160mm for conveniently loading and unloading the fixture and workpiece.

Stable air supply equipment
　The gas storage barrel assists to acquire steady air source to increase equipment utility rate.


PMC Picture
　Agma authorizes PMC to conduct 100% inspection to full travel length of three axes.
　Standard VDI 3441 3δis employed to ensure the machine accuracy and righteous of the
　inspection. For each axis, inspection along full axial travel length backwards and forwards
　for 6 times is conducted.


Cutting Capability
  • Workpiece Material：A6061 T6
  • Spindle Speed：15,000rpm
  • Cutting Feedrate：30,000mm/min.
  • Cutter：ø12 × 3Flutes End Mill for Aluminum
  • Depth of cut：12 mm
  • Width of cut：1.8 mm


  • Workpiece Material：Ti6Al4V
  • Spindle Speed：3,000rpm
  • Cutting Feedrate：2,100mm/min.
  • Cutter：ø12 × 4Flutes End Mill
  • Depth of cut：18 mm
  • Width of cut： 0.857 mm


  • Workpiece Material：P20
  • Spindle Speed：8,000rpm
  • Cutting Feedrate：10,000mm/min.
  • Cutter：ø12 × 4Flutes End mill
  • Depth of cut：24 mm
  • Width of cut：0.8 mm


  • Workpiece Material：SUS420
  • Spindle Speed：4,800rpm
  • Cutting Feedrate：3,200mm/min.
  • Cutter：ø12 × 4Flutes End Mill
  • Depth of cut：12 mm
  • Width of cut：1.8 mm
